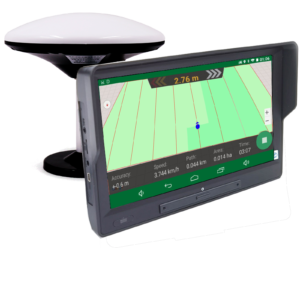

Tractor GPS Systems TG96

9-inch Android 6.0 OS tractor GPS systems, featuring 1GB RAM and 16GB flash storage. Preloaded with essential agricultural apps, this cutting-edge device revolutionizes farming navigation and management, optimizing tractor performance for maximum productivity in the field

Category:
Share:

Tractor GPS Systems 9-inch TG96, maximizes farming efficiency and precision, featuring preloaded applications, seamless installation, and advanced dual-band technology for unparalleled Accuracy.

Applications: Our device comes preloaded with essential farming GPS applications, including the Field Bee and Field Navigator App, empowering you with precise navigation and efficient field management.

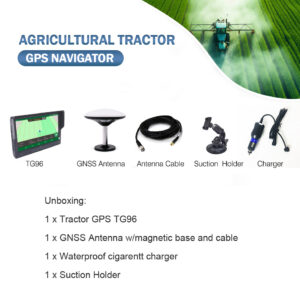

  • Installation: Enjoy hassle-free setup with durable tractor mounts, ensuring secure placement for seamless operation.
  • Connectivity: Stay seamlessly connected with built-in WiFi, enabling constant access to updates and real-time data for optimized performance.
  • Operation: Experience intuitive use with shortcut keys, LED power button, and pinch-to-zoom functionality, making navigation effortless and efficient.
  • Power: With a 5V2A vehicle ignition, our device ensures reliable power supply for uninterrupted operation in the field.
  • Dual Band: Equipped with an L1-L5 dual-frequency positioning module, our system offers faster, more accurate, and reliable positioning, enhancing overall performance.
  • Usage: Achieve exceptional accuracy, typically 1m or better, making it ideal for entry-level GPS guidance for tasks like grassland fertilizer spreading, maximizing efficiency and productivity.”

Tractor GPS Systems Specification:

System
Operating System Android
CUP Cortex A53*4 1.3GHz
RAM 1GB
ROM 16GB
Externsion Micro SD card
Display
Size 9 inch
Resolution 800×480
Brightness 500 cd/m2
Touch Screen Capacitive touch panel
Physical
Dust and Water Proof None
Size (LxWxH) 200x113x12mm
Weight 500 cd/m2
Environment Operation: -10 C to +60 C                                                           Storage:  -20 C to +70 C
GNSS Accuratcies
Constellation GPS/QZSS: L1 C/A, L1C, L2C, L5, L6
BDS: B1C, B1I, B2a, B2I, B3I
GLONASS: L1, L2
Galileo: E1, E5a, E6
IRNSS: L5
SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM
Channels 136
Positioning accuracy GNSS 2.5m CEP
SBAS  2.0m CEP
D-GNSS <1.0m CEP
Positioning  Refresh Rate MAX 20Hz
Time to first fix Cold Start: 28s                                                                                               Hot Start:   1s
Speed and Accuracy GNSS 0.1m/s CEP
SBAS  0.05m/s
D-GNSS 0.05m/s
1PPS 25ns
Communications
Wifi 802.11 b/g/n
Bluetooth Bluetooth 4.0
USB Mini USB 2.0
Serial Port (optional) TTL 3.3V
RS232 (optional) 5V
Battery
Li-ion battery 2000mAh
Voltage 3.7V
